DISPONIBLE PARA ENVIO INMEDIATO

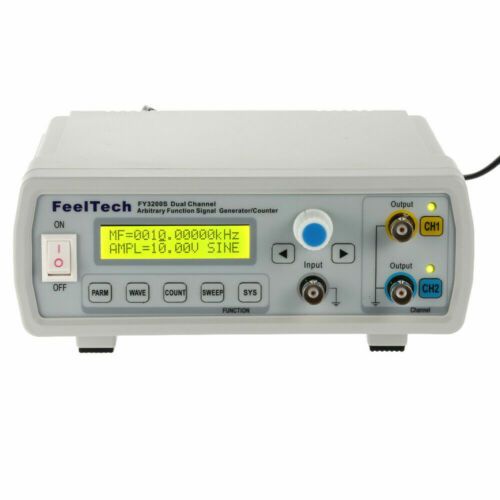

Generador 2 canales
Generador 6Mhz


INCLUYE :
* Generador de funciones
* 2 cables caimán para cada canal
* cable de alimentación
* Disco con informacion

********************************************************************************
********************************************************************************

Specifications:
Frequency Parameters
Frequency Range Sine Wave Normal Modes(Optional): 0Hz~6MHz
Square Wave 0Hz~6MHz
Triangle Wave 0Hz~6MHz
Other Waveform 0Hz~6MHz
The Min. Frequency Resolution 10mHz (0.01Hz)
Frequency Accuracy (+/-)5*10^(-6)
Frequency Stability (+/-)2*10^(-6)/3 Hours
Phase Adjustment Range 0~359°
Phase Resolution 1°
Waveform Parameters
Output Waveform Types Sine/Triangle/Square/Sawtooth/Pulse Wave, Lorentz Pulse, Multi-tone, Random Noise, Electrocardiogram, Trapezoidal Pulse, Symplectic Pulse, Narrow Pulse, Gaussian White Noise, Amplitude Modulated Waveform,
Frequency Modulated Waveform and User Defined Waveform
Sine Wave Harmonic Distortion =0.8%(Referent Frequency 1KHz)
Square Wave Rise/Fall Time =20ns(Referent Frequency 100KHz, 10Vpp)
Overshoot =7.5%
Duty Cycle 0.1%~99.9%
Sawtooth Wave Linearity =98% (0.01Hz~10KHz)
Pulse Wave Pulse Width Adjusting Range 10nS~1S
Rise/Fall Time =20ns
TTL Output Level Amplitude >3Vpp
Fan-out >20 TTL Load
Rise/Fall Time =20ns
CMOS Output Low Level <0.3V
High Level 1V~10V
Level Rise/Down Time =20ns
Waveform Output
Output Impedance 50O(+/-10%) (Typical)
Output Amplitude =20Vpp(No Load)
Protection All signals output can work above 60s under the condition of load short circuit
DC Offset
Offset Adjustment Range (+/-)10V
Offset Resolution 0.1V
External Measurements
Frequency Measuring Range
GATE-TIME=1S 1Hz - 100MHz
Input Voltage Range 1Vpp~20Vpp
Counting Range 0~4294967295
Periodic Measurement 20ns Resolution, the Max. Measurable 20s
Scanning Function
Scan Mode Linear Sweep, Logarithm Sweep
Scan Object Frequency
Scan Time 1s-999s/Step
Frequency Setting Range Start Point and End Point can be set arbitrarily
Frequency Scan Range It is determined by the sweep parameter settings
General Parameters
Memory Quantity 20
Location M0 to M19 (01 for default value)
Interface Interface Mode Using USB to Serial Interface
Communication Speed 9600bps
Protocol Command Line Mode, Protocol Complete Open
Power Supply Voltage Range AC 85V to AC 260V
Display Display Type LCD 1602 Display
Environment Temperature: 0~40°C Humidity: <80%
Size 19 * 18 * 7cm / 7.5 * 7 * 2.75in (L * W * H)
Weight 577g / 20.36oz
Package Size 25 * 21 * 9.5cm / 9.84 * 8.27 * 3.74in (L * W * H)
Package Weight 913g / 32.23oz
Package List:
1 * Function Signal Generator
1 * USB Cable
1 * Power Plug
1 * CD
2 * BNC Clips Cable
