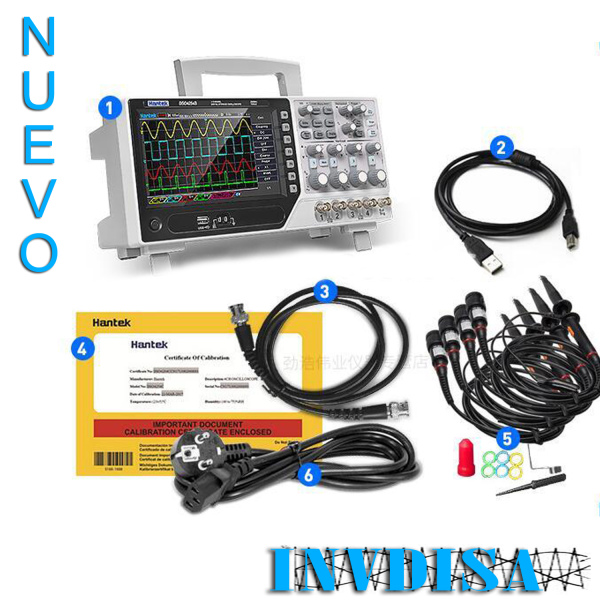

INCLUYE:
Osciloscopio y Generador de funciones DSO4254C 4CH 250Mhz a color
4pzas Punta Probe x1/x10 250Mhz
1pza Cable de generador de funciones
1pza Cable de alimentacion
1pza Cable USB
1pza Certificacion de CALIBRACION



PRINCIPALES CARACTERISTICAS (Este osciloscopio es Generador de funciones y Osciloscopio 2 en 1)

*4CH oscilloscope+EXT+DVM+auto range function
*80-250MHz bandwidth,minimum range 500µV /div,1GS/s sample rate.
*Over 32 types of auto measurement function
*Advanced digital trigger system, high trigger sensitivity.
*Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc.
*Function/arbitrary signal generator25MHz,12BitS resolution, 200MHz DDS, ARB/square wave/sine wave/triangular wave/trapezoidal wave/impulse wave/DC etc.,easy to simulate the sensor.
*Integrated USB Host/Device, convenient to communicate with PC. Support U-stick storage/systerm update.
*Support a variety of SCPI remote control command
*Support optional RS232 port, LAN port, HDMI port, touch screen, WIFI communication, SD card storage
*Stable and reliable quality, sturdy and durable.


Sample Rate Range: 1GS/s
Waveform Interpolation: (Sin x)/x
Tigger Level . CH1, CH2, CH3, CH4
Source . CH1, CH2, CH3, CH4/EXT
VERTICAL
AD converter - 8bi resolution
each channel sampled simultaneouly
VOLTS/DIV Range - 500uV/div to 10V/div at input BNC
Selectable Analog BandwidthnLimit tupical - 20Mhz
Low Frequency Response - <10Hz at BNC
Rise Time at BNC typical - <1.4ns
Maximum Input Voltage - 300VRMS (10X)
Supported Probe Attenuation Factors - 1x, 10x, 100x, 1000x
Dispay Resolution - 800 horizontal by 480 vertical pixels
Display Contrast - adjustable


////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
ARBITRARY WAVE GENERATOR MODE
Waveform Frecuency
------------------ Sine_: 0.1Hz -25Mhz
------------------ Square: 0.1Hz - 10Mhz
------------------ Ramp: 0.1Hz - 1Mhz
------------------ Exp: 0.1hz - 5Mhz
Amplitude
------------------ 5mV - 3.5Vp-p(50ohm)
------------------ 10mV-7Vp-p(Hight impedance)
DAC: 2K-200Mhz adjustable
Frequency resolution: 0.001
Channel: 1CH wavedorm Output
Waveform Depth: 4KSa
Frequency Stability: <30ppm
Output impedance_ 50ohm


////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

Hantek Certificate Of Calibration
Numero de Certificado
Descripcion
Serial
Foto4 muestra la certificacion expedida por Hantek
